Homepage / Intralogistics / Intralogistics overview
Back

Intralogistics components

Keeping material flows moving: long-lasting, fast and quiet – thanks to faigle’s innovative products and components.

Sortation systems Conveying systems Shuttle systems Overhead conveyor carriages AGV wheels Downloads Contact

Scroll to ...

Sortation systems Conveying systems Shuttle systems Overhead conveyor carriages AGV wheels Downloads Contact
Contact us

Wheels and components for intralogistics systems

In many sectors, high-performance plastics put metal in the shade when it comes to meeting the requirements for components’ load-bearing capacity and durability. By building on its applications-based know-how and sophisticated designs, faigle has developed a new generation of support and guiding wheels, as well as other components and complete assemblies for shuttle systems.



Reliability is everything in intralogistics because stoppages cost money. Which makes a proven track record and long service life all the more important. faigle wheels keep on rolling for up to 15 years, clocking up more than 65,000km along the way.

lauf-undf ührungsrolle.png

Sortation systems

In the intralogistics sector, support and guiding wheels are mainly used in sortation and conveying systems. They are exposed to significant loads and have to withstand extremely tough operating conditions. High availability is vital for sortation systems.

faigle Kunststoffrollen bieten:



  • Long service life thanks to hard-wearing material – significantly higher abrasion resistance compared with rubber
  • No hydrolysis-related ageing or damage – reliable operation, including in humid conditions
  • Attractive pricing thanks to cost-effective injection moulding
  • Quality-controlled ball bearings that meet the highest standards ensure trouble-free operation over many years



Wheel holders are part of the carriers used in parcel sortation and baggage handling systems. Because cornering generates kinematic effects, the running wheels on the carriers need to be fitted in a way that allows them to swivel.

Show more Show less
Find out more about our wheels for sortation systems
lauf und führungsrollen
Support and guiding wheels
rollenhalterung
Swivel wheel comfort
Swivel_wheel_air_gross_P
Swivel wheel air
rollen in förderanlagen.png

Conveying systems

Our selection of wheels and other parts for conveying systems includes a range of key components:



  • Diverter wheels are powered conveyor elements that change the direction in which goods flow in a conveying system.
  • Together with the ball bearing race, the bearing shield and housing form a unit that maintains the conveyor wheel’s position on the stationary shaft. The housing is snapped on over the outer ring of the ball bearing race and forms the connection with the wheel tube.
  • Belt deflection wheels help to drive and deflect the drive belt, as well as maintaining tension and providing pressure or support. High speeds and dynamic interaction between the belt and the wheel have a significant impact on both elements.
Show more Show less
Find out more about our wheels for conveying systems
ausschleuserrollen
Diverter wheels
lagerschild und rollenbogen
Bearing shield and housing
riemenrollen
Belt deflection wheels

Shuttle systems

Shuttle systems usually run on four driven wheels, resulting in high speeds and strong dynamic forces. Rapid shuttle braking and acceleration put significant stress on the tires, so the wheels need to be firmly connected with the shuttle’s drive shaft to ensure effective drive-torque transfer.



Shuttle flaps are heavy-duty components in the shuttle systems used in automated warehouses. Their function is to place items in the bays and retrieve them. When the flaps are raised, a telescopic arm reaches into the bay. The flaps then swing down behind the item and the telescopic arm is retracted, pulling the item with it.



Meeting extremely high load-capacity and durability standards requires wide-ranging expertise in geometry and material design.

Show more Show less
Find out more about our components for shuttle systems
shuttleklappen
Shuttle flaps

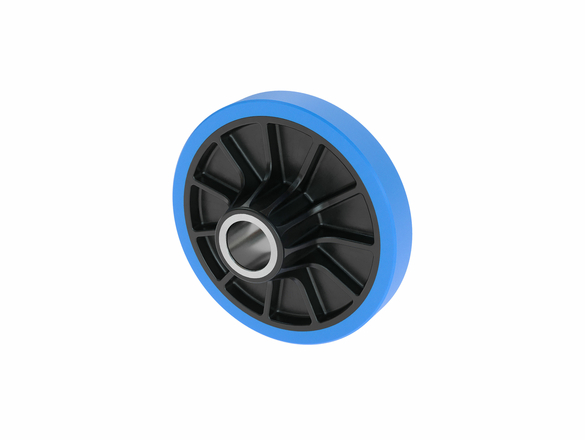

shuttle-laufräder
Shuttle wheels
laufwagen hängeförderer.png

Overhead conveyor carriages

Ranging in size from light to heavy duty, overhead conveyors are used in industry on various scales. Besides the track system, the carriages are the central component in these set-ups.



faigle’s innovative solutions are designed primarily for light to medium-sized carriages, and our overhead conveyor carriages feature specially designed smooth-running ball bearings with a contactless cover plate. A range of special high-performance plastics with excellent smooth-running properties, outstanding wear resistance and effective noise insulation qualities are available for the tire.



  • The tire is enclosed and mounted on the outside in order to protect the bearing race against dust and other environmental factors.
  • Special fillers in the material are used to increase the weight, meaning that the overhead conveyor’s centre of gravity can be moved as required.
  • Antistatic designs are available for all parts on request. faigle delivers fully assembled carriages, including with an integrated RFID chip or laser-etched QR code if required.
Show more Show less
Find out more about overhead conveyor carriages
agv laufräder.png

AGV wheels

Used on automated guided vehicles (AGVs), these wheels bear the weight of the vehicle and the goods being moved, as well as transmitting drive power from the motor to the track and steering the vehicle in the process.



With only a limited installation space available (in terms of diameter and width), AGV wheels need to withstand very heavy loads and ensure excellent grip on a range of different surfaces. They also have to be extremely wear resistant, including in applications where tight cornering and on-the-spot rotation are essential. Low running resistance and low-friction cornering are important for customers because they enhance energy efficiency – a particularly important factor as AGVs are battery-operated.



  • faigle’s AGV wheels usually feature a 2-component design with a polyamide hub and PAS-PU TCS tire.
  • A very stiff hub ensures a high load-bearing capacity.
Show more Show less
Find out more about AGV wheels

Intralogistics – contact

Get a personalised quote today!

Contact us

Downloads for intralogistics components

Components for Intralogistics systems
Components for Intralogistics systems
pdf • 10.19 MB
Wheels for Intralogistics systems
Wheels for Intralogistics systems
pdf • 2.98 MB
All downloads

faigle – the intralogistics experts

BESPOKE PRODUCTS FOR INTRALOGISTICS SYSTEMS

At faigle, we began developing the first wheels made of thermoplastic polyurethane in 1968. And we’ve been refining our plastic wheels ever since.



Today, we supply wheels and assemblies for warehouse logistics, sortation and conveying systems to numerous respected manufacturers.

Find out more about faigle

Intralogistik

FAQ

What types of wheel are required in intralogistics?

A range of different wheels are needed in the intralogistics sector in order to optimise material flows in warehouse and conveying systems. Just to give you one example: our support and guiding wheels reduce friction and wear on conveyor belts.



Made from high-quality plastics, these wheels have a high load-bearing capacity and a long service life. In addition, our wheel conveyors, wheel clips and diverter wheels enhance the flexibility and efficiency of conveying systems. These modules can be configured to match individual specifications and adapted to satisfy intralogistics system requirements.

Which spare parts are needed in intralogistics?

Intralogistics operations call for a broad spectrum of spare parts – which faigle supplies. They mainly include support and guiding wheels, which handle heavy loads in sortation and conveying systems.



faigle wheels are made from high-performance plastics – extremely durable and with low running resistance, they also have excellent damping and wear-resistance properties. faigle’s shuttle system components – also made from high-performance plastics – deliver high precision and rigidity, coupled with a lightweight design.

"Energy efficiency is both ecologically and economically relevant: Thermoplastic components bring considerable weight savings and increase the economic efficiency of the facilities."
