Homepage / Escalators and elevators / Guiding rollers for elevators / 2C Elevator guiding roller
Back

2C Elevator guiding roller

A cutting-edge 2C solution for heavy-duty elevator applications. Fitted directly on the elevator cabin or the counterweight, our 2C guiding roller sets new standards in performance and durability.

Produkt information Product overview Downloads Contact

Scroll to ...

Produkt information Product overview Downloads Contact
Contact
2C Elevator guiding roller
faigle’s premium 2C guiding rollers for elevators are designed to ensure precision guidance.

01.

Application / Challenges

02.

Solution / Material

03.

Customer Benefits

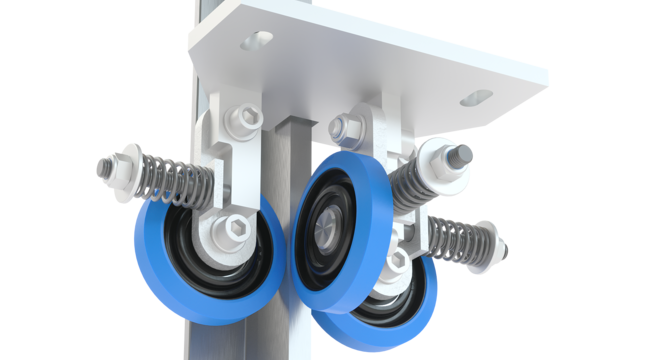

Aufzugsrolle Anwenderbild_RGS_gefedert_P_v2.0 (1).png
Application / Challenges

The 2C guiding rollers are used in elevators to guide the cabin or the counterweight on the guide rails in the elevator shaft. The rollers are fitted on either rigid or spring-loaded guide shoes, usually in a T-shaped configuration.


Guide systems like these are used for all elevator speeds. The rollers for the elevator cabin in particular are exposed to significant shock loads, as well as – for short periods – high loads resulting from overloading of one side of the cabin. Alongside reliable operation, including at high speeds, the key requirements also include low running noise emissions and vibrations.


Customers have strict specifications in terms of ride comfort in the cabin and noise transmission to the building interior – both of which are important quality criteria for elevators.

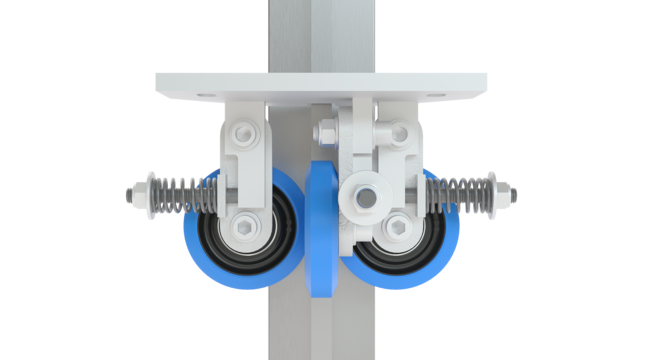

Aufzugsrolle Anwenderbild_RGS_gefedert_F_2.0 (1).png
Solution / Material

faigle’s 2C guiding rollers feature a tire made from PAS-PU – a thermoplastic elastomer – as well as a glass fiber-reinforced polyamide hub and an overmolded ball bearing.


The non-detachable tire is securely welded onto the hub, while a machined running surface delivers optimum concentricity.


PAS-PU stands out for its high tear resistance, outstanding mechanical properties and excellent hydrolysis stability.


faigle only uses ball bearings from selected manufacturers that have been audited by the company.

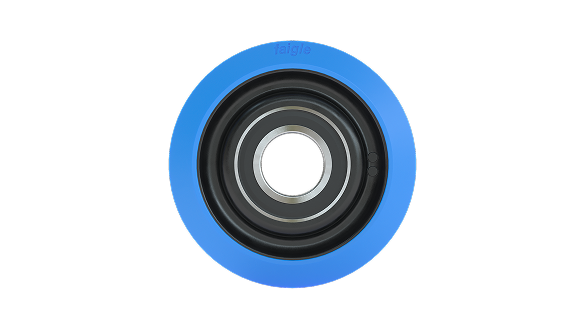

Aufzugsrolle _044.02635-F_v2_klein.png
Customer Benefits
  • Long service life due to wear-resistant material and quality-controlled ball bearings that meet the highest standards
  • Attractive pricing thanks to cost-effective injection molding
  • Overmolding ensures that the ball bearing sits securely
  • Thick tire and excellent concentricity deliver an exceptional ride comfort and low noise emissions

2C Elevator guiding roller

faigle’s premium 2C guiding rollers for elevators are designed to ensure precision guidance.

01.

Application / Challenges

Aufzugsrolle Anwenderbild_RGS_gefedert_P_v2.0 (1).png

Application / Challenges

The 2C guiding rollers are used in elevators to guide the cabin or the counterweight on the guide rails in the elevator shaft. The rollers are fitted on either rigid or spring-loaded guide shoes, usually in a T-shaped configuration.


Guide systems like these are used for all elevator speeds. The rollers for the elevator cabin in particular are exposed to significant shock loads, as well as – for short periods – high loads resulting from overloading of one side of the cabin. Alongside reliable operation, including at high speeds, the key requirements also include low running noise emissions and vibrations.


Customers have strict specifications in terms of ride comfort in the cabin and noise transmission to the building interior – both of which are important quality criteria for elevators.

02.

Solution / Material

Aufzugsrolle Anwenderbild_RGS_gefedert_F_2.0 (1).png

Solution / Material

faigle’s 2C guiding rollers feature a tire made from PAS-PU – a thermoplastic elastomer – as well as a glass fiber-reinforced polyamide hub and an overmolded ball bearing.


The non-detachable tire is securely welded onto the hub, while a machined running surface delivers optimum concentricity.


PAS-PU stands out for its high tear resistance, outstanding mechanical properties and excellent hydrolysis stability.


faigle only uses ball bearings from selected manufacturers that have been audited by the company.

03.

Customer Benefits

Aufzugsrolle _044.02635-F_v2_klein.png

Customer Benefits

  • Long service life due to wear-resistant material and quality-controlled ball bearings that meet the highest standards
  • Attractive pricing thanks to cost-effective injection molding
  • Overmolding ensures that the ball bearing sits securely
  • Thick tire and excellent concentricity deliver an exceptional ride comfort and low noise emissions

2C elevator guiding roller: product overview

2C Elevator guiding roller

2C Elevator guiding roller

To product

Contact Elevator

Any questions? Or do you need a personalised quote for our 2C Elevator guiding roller?

Contact us

Downloads

2C Elevator guiding roller EN
2C Elevator guiding roller EN
pdf • 372.56 KB
